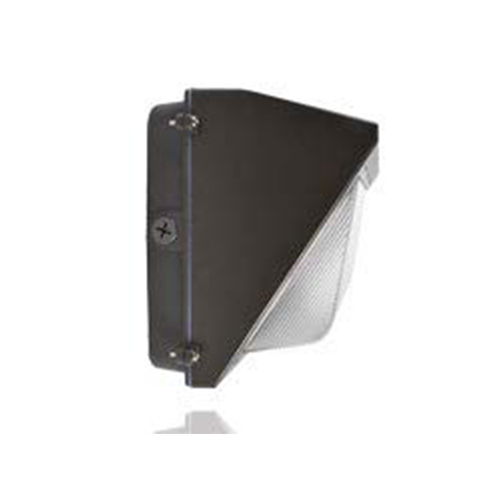

WPFC Full Cutoff Wall Pack – Outdoor

The WPFC Wall Pack is tuned for high visual quality at night and is ideal for illumination of stairways, tunnels, building perimeters, overpasses, and parking garages. eLucent WPFC fixtures are rated for use in wet locations and can operate in ambient temperatures from -40º to 40ºC.

Input Voltage (VAC) 120-277
CRI 80+
CCT (K) 4000,5000
PF >0.9
THD
28W= <15%
40W=<10%
60W=<12%
90W=<20%
L70 (Hours) 28W=63,000, 40W-90W=81,000
Color Bronze
Housing Die Cast Aluminum
Optic Types Clear Glass
Temperature Range -40°C to 40°C
Warranty 10 Years

1. Recommended mounting height is between 8’ and 20’.
2. Integrated heat management
3. Polycarbonate lens fitted for uniform light distribution.
